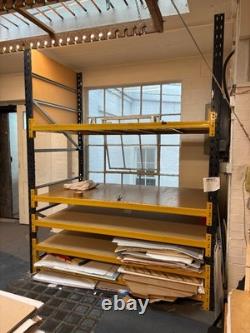

Heavy Duty industrial type Shelving


High quality heavy duty shelving. Frames are a bolted fabrication for guaranteed strength and squareness. They incorporate pairs of cold formed uprights and modular gate system of diagonal bracing. Footplates are attached to the base of the frames to provide load distribution and floor fixing. Beams are constructed from rectangular profile sections comprising either single or double elements. The connectors welded to the beam ends each have multiple tongues which form a positive locking action when fitted to the end frames. Accidental removal of beams is prevented by the fitting of locking pins, beams can. Be adjusted on increments of 75mm. Frame Uprights are powder coated Graphite Grey (BS 5252 18A14) with bracings in pregalvatite material, beams are powder coated High Visibility Yellow. BAY DETAILS Frame height = 2700mm Frame width = 1200mm Bay clear entry = 1950mm Number of storage levels = 5 Height from baseplate position 1 = 150 + 18mm chipboard position 2 = 375mm + 18mm chipboard position 3 = 675mm + 18mm chipboard position 4 = 975mm + 18mm chipboard position 5 = 1800mm (No chipboard shelf) Maximum load per pair of beams = 828kgs Maximum bay load = 4140kgs.
